Technical Information for Beltwinders

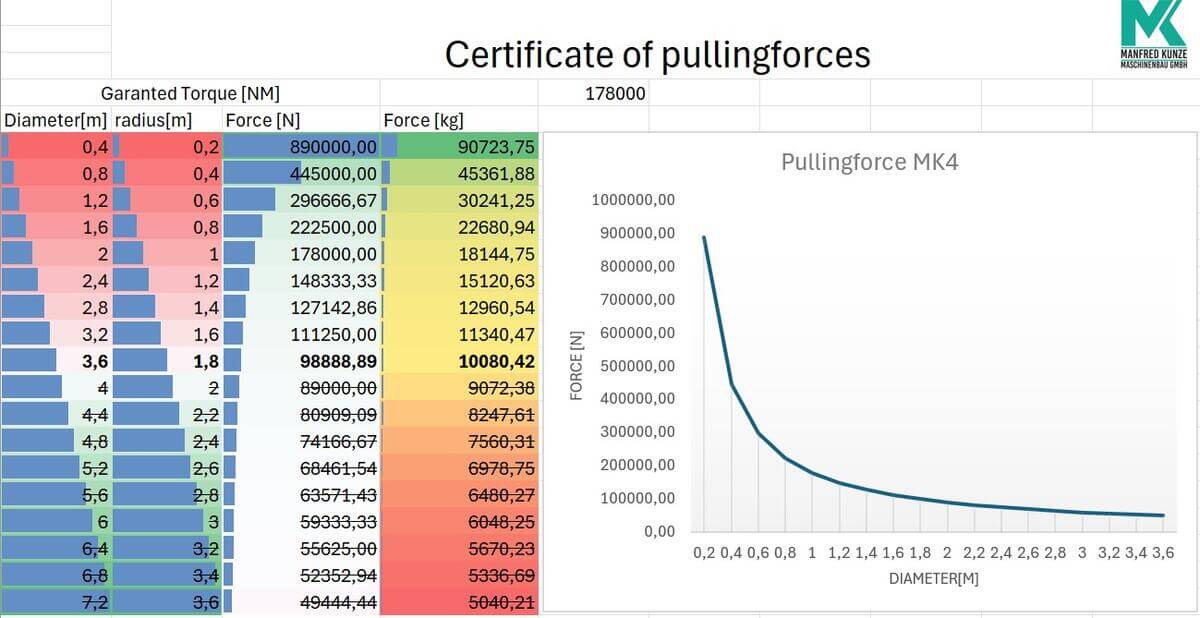

Tensile forces decrease as the diameter increases!

Calculation of tensile force (simplified):

Simplified calculation:

F = (0.02 * LG * (mG + mR) + h * mG) * 9.81 m/s²

LG = Overall length of the belt to be pulled on the conveyor system in m

mG = Weight of the belt per metre (kg/m)

mR = Weight of the idlers per metre (kg/m)

h = Height difference in m
